ART Personal Monitor Mixer

Description

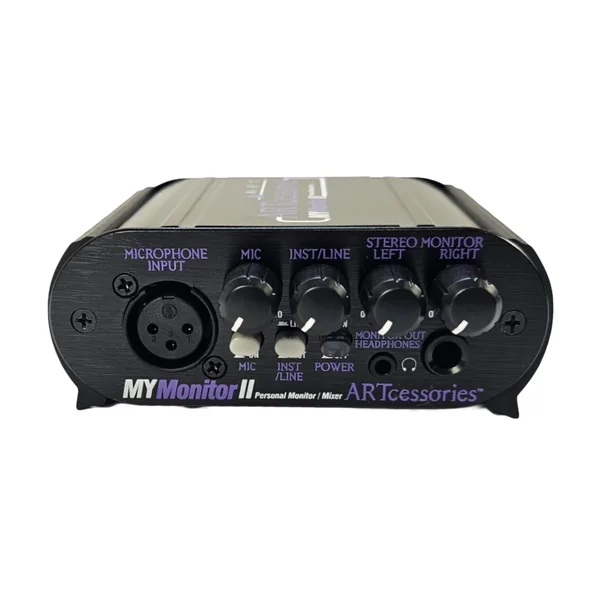

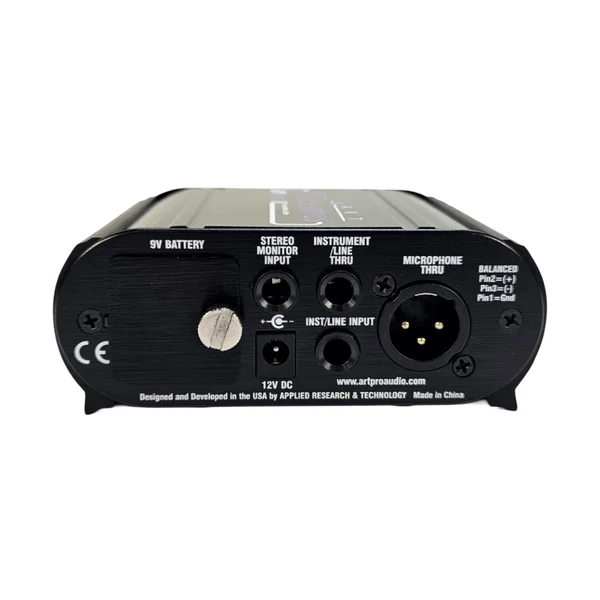

ART MYMONITORIICE Personal Monitor Mixer

MYMonitorII tilbyder blanding af enhver mikrofonkilde med enhver stereo-kilde i en personlig overvågningsløsning. Mikrofonens Thru tilbyder direkte forbindelse til enhver mixer og giver phantom-power til kondensatormikrofoner. MYMonitorII kan drives via den medfølgende 12V DC strømforsyning, eller via et internt 9V batteri.

Den pop-løse mikrofons on/off-switch lader brugeren mute mikrofonen lokalt. Hovedtelefons-sektionen tilbyder uafhængige 1/8″ og 1/4″ TRS-outputs med rigeligt drive til dem begge.

Blends any Microphone, Instrument and Stereo Source for Personal Monitoring
Microphone Input and Thru with Pop-less On/Off Mute Switch
Passes Phantom Power for Operation with Condenser Microphones
Instrument/Line Input and Thru Jacks
Stereo Monitor Input with Blend Control
Headphone output section has 1/8-inch and 1/4-inch Jacks
High Performance, Low Noise Circuitry
9v battery and 12vDC Power Operation

Maximum Input Level: +6 dBu (mic), +12 dBu (instrument), +32 dBu (line), >+32 dBu (stereo monitor)
Input Impedance: 4.5kOhm (mic), 1mOhm (instrument), 100kOhm (stereo monitor, line)
Maximum Output Level: +12dBu (headphones)
Maximum Gain: 47dB (mic), 41dB(instrument), 21dB(stereo monitor, line)
Output Impedance: 47 Ohm (each headphone output)
Input Connections: XLR balanced microphone, 1/4-inch stereo monitor, 1/4-inch mono instrument/line input
Output Connections: XLR balanced microphone, 1/4-inch and 1/8-inch headphones, 1/4-inch mono instrument/line thru
Signal To Noise Ratio: > 96dB
Power: 12VDC @ 150mA (Adaptor Included) or 9VDC Battery
Dimensions: 1.85″H x 4.6″W x 4.1″D (47mm x 117mm x 104mm)
Weight: 1.10 lbs (0.50kg)
