Description
While the original THA-120F was limited to colored light and pastel tones, the new version now delivers excellent white light performance as well.This is made possible by a color mixing system based on red, green, blue, and lime. The broad-spectrum lime enables particularly clean yellow and orange tones, as well as high-quality cool white and warm white light; something that was not previously achievable with traditional RGBW fixtures.Behind the Fresnel lens is a manual zoom with a range from 3° to 48°, allowing flexible adjustment of the beam angle.A specially designed low-noise fan mode makes the fixture suitable for noise-sensitive environments. In addition, the PWM frequency can be adjusted from 1200 Hz to 25 kHz in 12 steps.The fixture also comes with a rotatable barndoor with four leaves. Two of the leaves can be extended, allowing for precise and optimal beam shaping at all times.

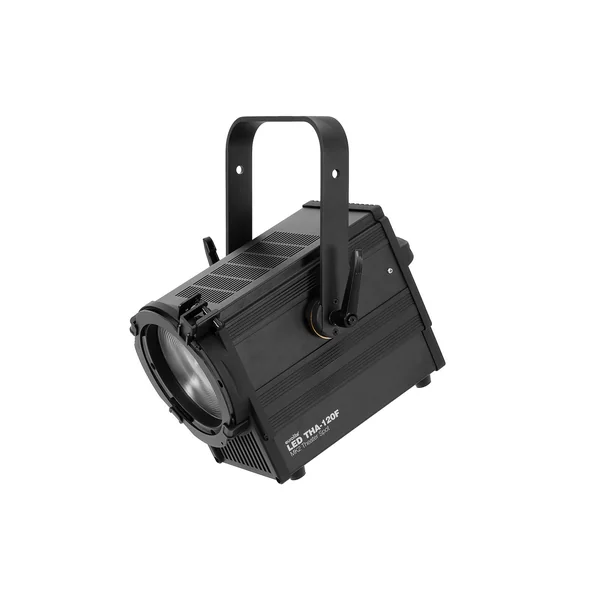

Fresnel spotlight (fresnel lens), 120-W-COB (chip-on-board)-LED 4in1 RGBL, extremely quiet, DMX
- Variable color temperature 2400 K – 8500 K
- With a beam angle of 3° – 48°
- Zoom manual
- Exact 16 bit resolution at Dimmer, color
- Very quiet working noise
- Flicker-free
- Dimmer electronic; dimmer curves; Dimmer speed (step response); pulse-width modulation adjustable; color blend stepless
- Wash effect
- 1 LED 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
- Direct color selection for 117 preset colors
- With mounting bracket
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
- Application possibility: On stand; suspended
- Control via DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone
Scope of delivery
- 1 x spotlight
- 1 x user manual
- 1 x power cord
- 1 x barndoor
- 1 x filter frame
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 130 W |
| Protection class: | Protection class I |

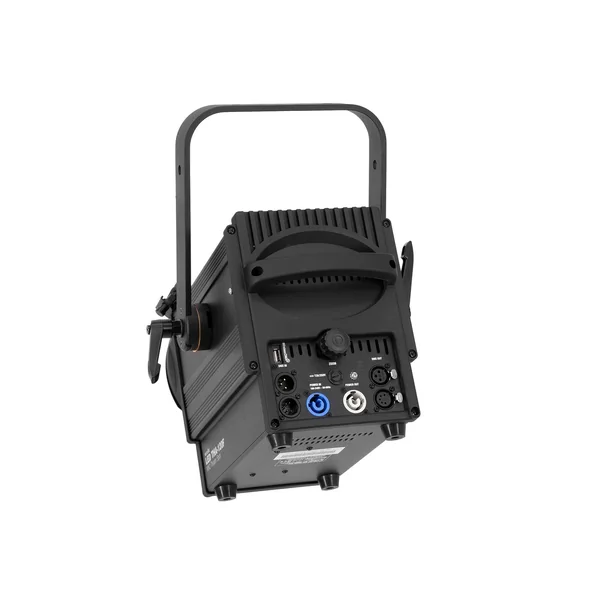

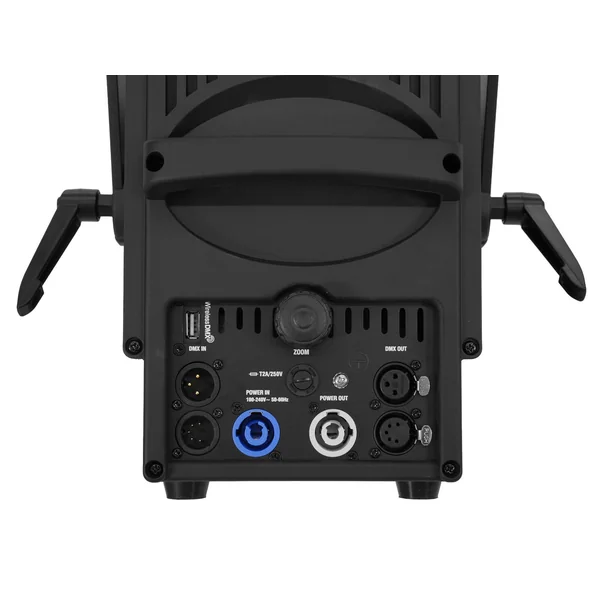

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: | 3 x 1.5 mm² H05VV-F |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix) |
| Flash rate: | 1 – 20 Hz |
| Equipment: | Zoom manual |
| DMX channels: | 1; 2; 4; 6; 16 |
| DMX input: | 5-pin XLR (M) mounting version 3-pin XLR (M) mounting version |
| DMX output: | 5-pin XLR (F) mounting version 3-pin XLR (F) mounting version |
| Cooling: | 1 x temperature-controlled fan |
| Control: | DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone |
| Fixtures available for: | GDTF (GrandMA3); Light Captain; Light´J |
| Projection: | Flicker-free |
| DMX features: | RDM For bidirectional communication over the DMX line |
| DMX fail mode: | Hold; blackout; manual |
| Beam angle: | 3° – 48° |
| Beam angle (1/2 peak): | 3 – 26° |
| Beam angle (1/10 peak): | 14 – 48° |
| Color temperature: | 2400K – 8500K adjustable |
| Lamp life: | 30000 h |
| Housing color: | Black |
| Attachment system: | Mounting bracket |

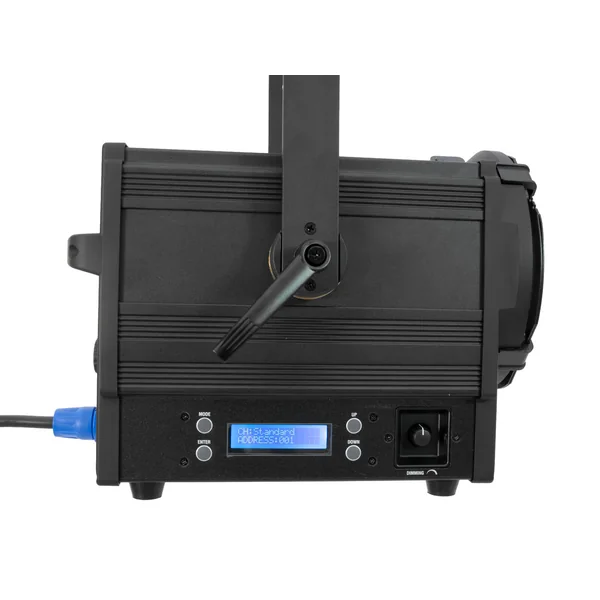

| Display type: | Monochrome LCD display |
| USB port: | Type A |
| Diameter mounting holes: | 3 x Ø10mm |
| Use of brands: | Built with SEETRONIC connector |
| Material: | Aluminum |
| Dimensions: | Length: 35.0 cm Width: 31.5 cm Height: 39.5 cm |
| Weight: | 7.10 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
